腹直筋鞘( ふくちょくきんしょう、英:sheath of rectus abdominis )

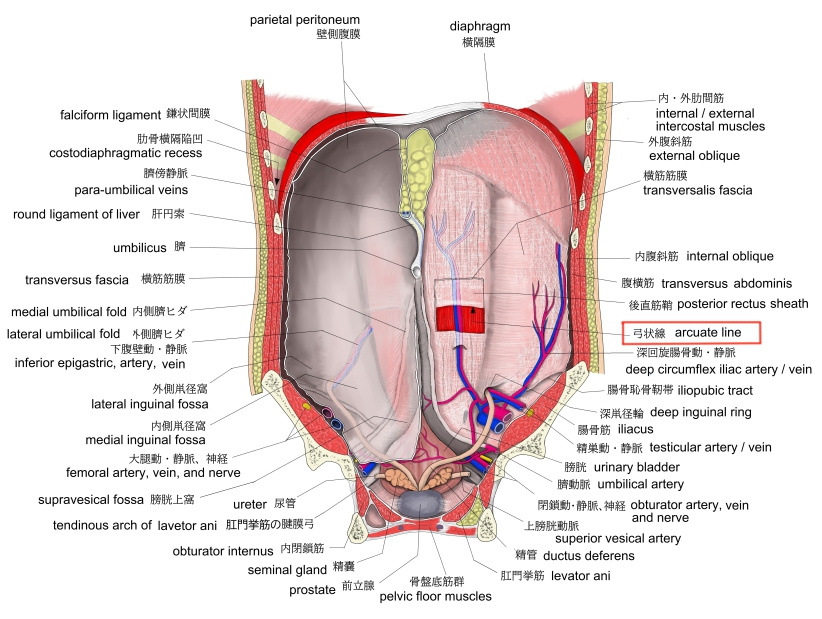

腹壁前部を後方から見たもの




「日本人体解剖学」では以下のように解説している。

側腹筋(外腹斜筋、内腹斜筋、腹横筋)の腱または腱膜が腹直筋を鞘状に包んだもの。
腹直筋鞘は前葉と後葉からなり、構成は弓状線の上方と下方で異なる。
【弓状線の上方】では、前葉と後葉があり、外腹斜筋の腱膜は前葉、内腹斜筋の腱膜は腹直筋の外側で2葉になり前葉と後葉、腹横筋の腱膜は後葉を形成する。
【弓状線の下方】では、前葉のみで後葉はなく、これらの3筋の腱膜は全て腹直筋鞘の前葉を形成し、腹直筋の後面には、わずかに横筋筋膜と腹膜のみがあるのみである。



また、以下は「Wikipedia」の解説文となる。

The rectus sheath (also called the rectus fascia[1]) is a tough fibrous compartment formed by the aponeuroses of the transverse abdominal muscle, and the internal and external oblique muscles. It contains the rectus abdominis and pyramidalis muscles, as well as vessels and nerves.[2]
Structure
[edit]
The rectus sheath extends between the inferior costal margin and costal cartilages of ribs 5-7 superiorly, and the pubic crest inferiorly.[2]
Studies indicate that all three aponeuroses constituting the rectus sheath are in fact bilaminar.[3]
Below the costal margin
[edit]


Region

Description

Above the arcuate line

At the lateral border of the rectus abdominis muscle, the aponeurosis of the internal oblique muscle splits into an anterior layer and a posterior layer (this splitting forms a shallow groove - the semilunar line).[3]

  • An anterior rectus sheath composed of the aponeurosis of the external oblique muscle and anterior portion of the aponeurosis of the internal oblique muscle passes in front of the rectus abdominis muscle.[2][3]
  • A posterior rectus sheath composed of the posterior portion of the aponeurosis of the internal oblique muscle and the aponeurosis of the transversus abdominis passes behind the rectus abdominis muscle.[2][3]

All aponeuroses of the rectus sheath unite at (and and decussate across) the midline, forming the linea alba.[3]

Below the arcuate line

Below this level, the aponeuroses of all three muscles (including the transversus) pass in front of the rectus.[2][3] The posterior layer of the rectus sheath is thus absent and the rectus abdominis muscle is separated from the peritoneum only by the transversalis fascia.[2] Due to this reason, this region is more susceptible to herniation.[citation needed]

Superficial/anterior to the anterior layer of the rectus sheath are the following two layers:[4]

Deep/posterior posterior layer of the rectus sheath (where present) are the following three layers:[citation needed]

Above the costal margin
[edit]
Since the tendons of the internal oblique and transversus abdominis only reach as high as the costal margin, it follows that above this level the sheath of the rectus is deficient behind, the muscle resting directly on the cartilages of the ribs, and being covered only by the tendons of the external obliques.
